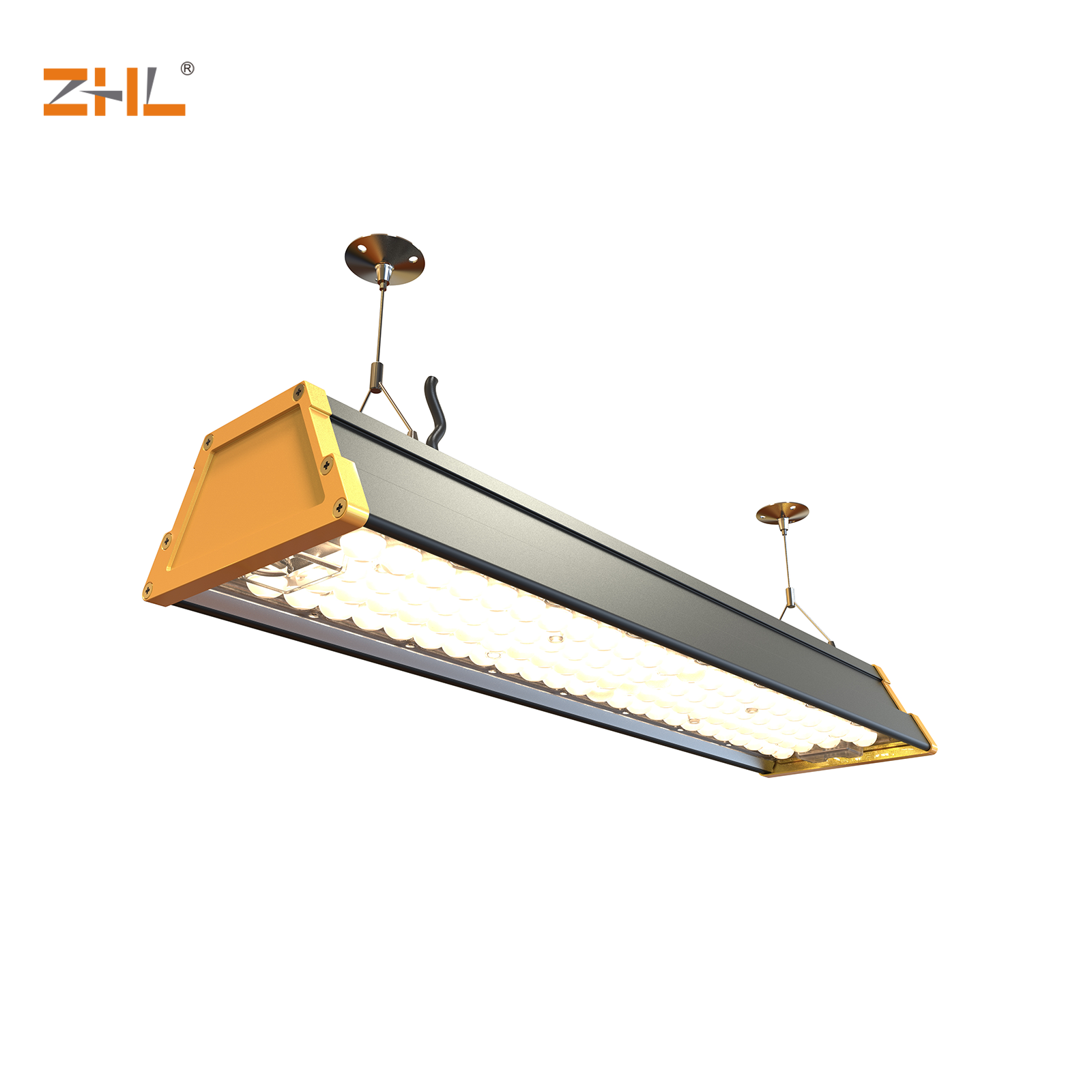

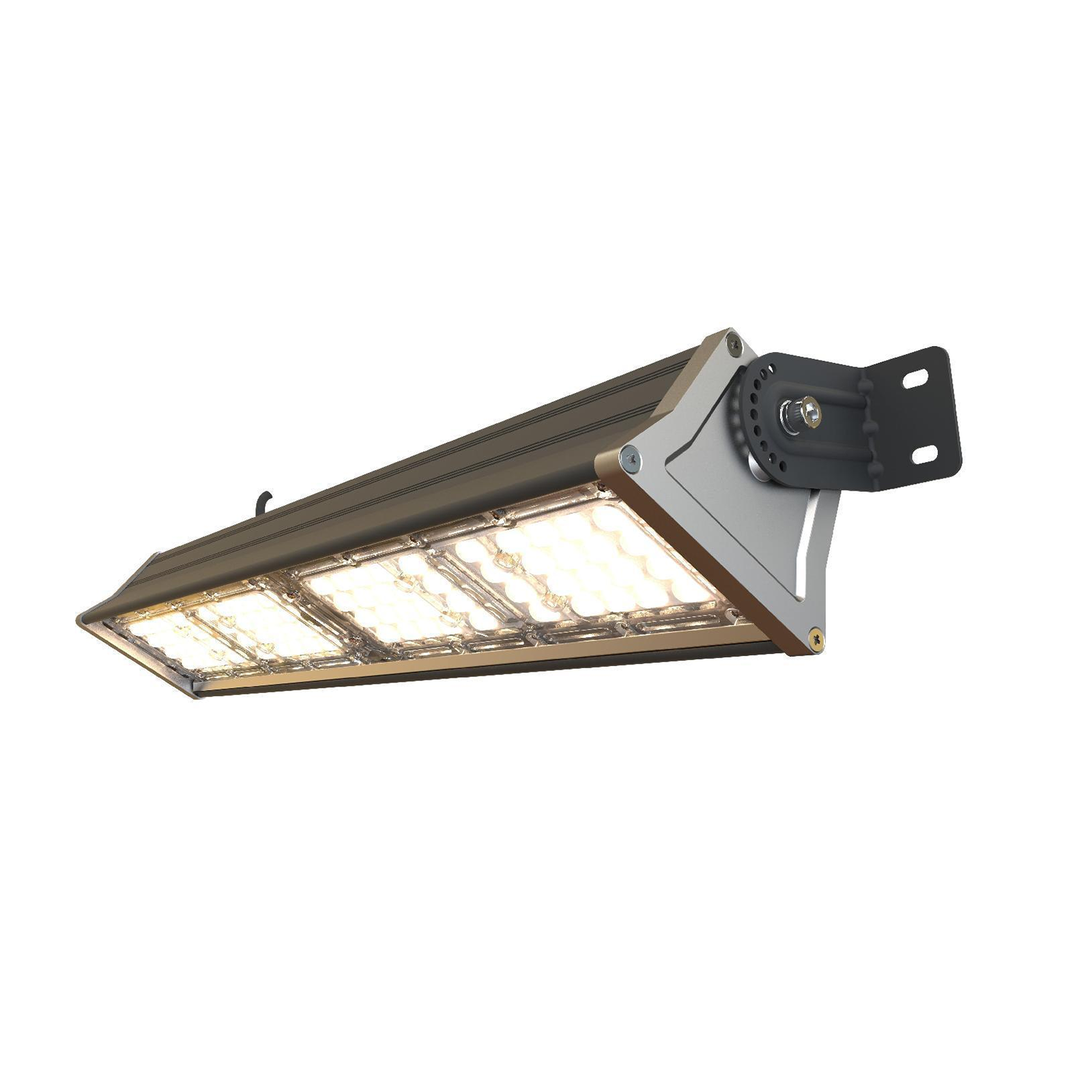

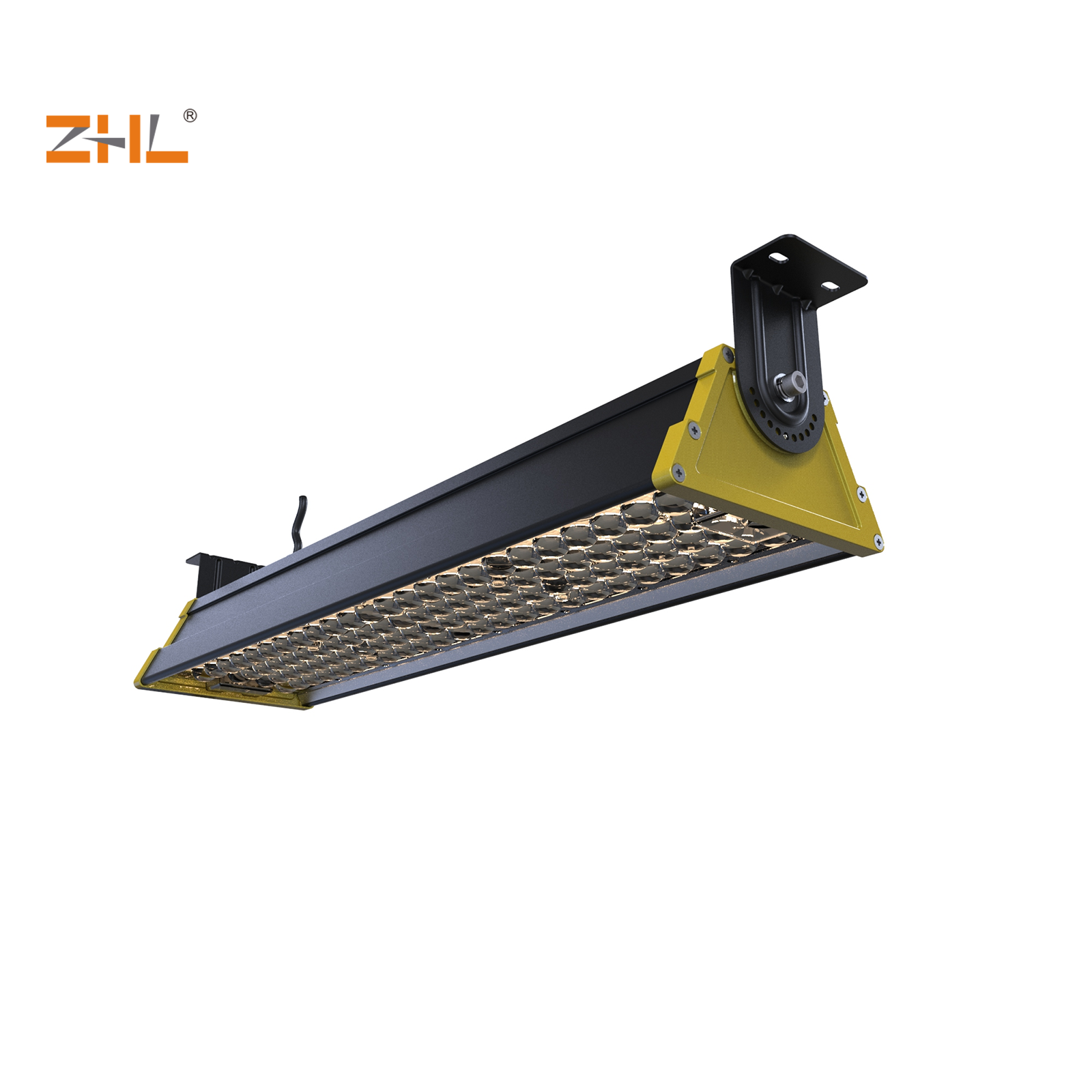

ZHL Linear High Bay Gen. 2.0
Using Seoul Semiconductor’s 2835 LED chip for the first time, ZHL redesigned the linear highbay and ensured that the product can be seamlessly used in industrial plants and other industrial facilities with high ceilings. The manufacturer extends the warranty for 5 years, which can make users feel at ease to use professional equipment.
Engineers now customize it in a range of 130lm/w to 180lm/w.
- Aluminum Body with steel channel for added rigidity
- Toolless Hinged Driver Access
- Impact Resistant and IP65 Rated Lens Options:
- Frosted Acrylic (FRL)
- Frosted Polycarbonate (PFL) IK10 Impact Rated

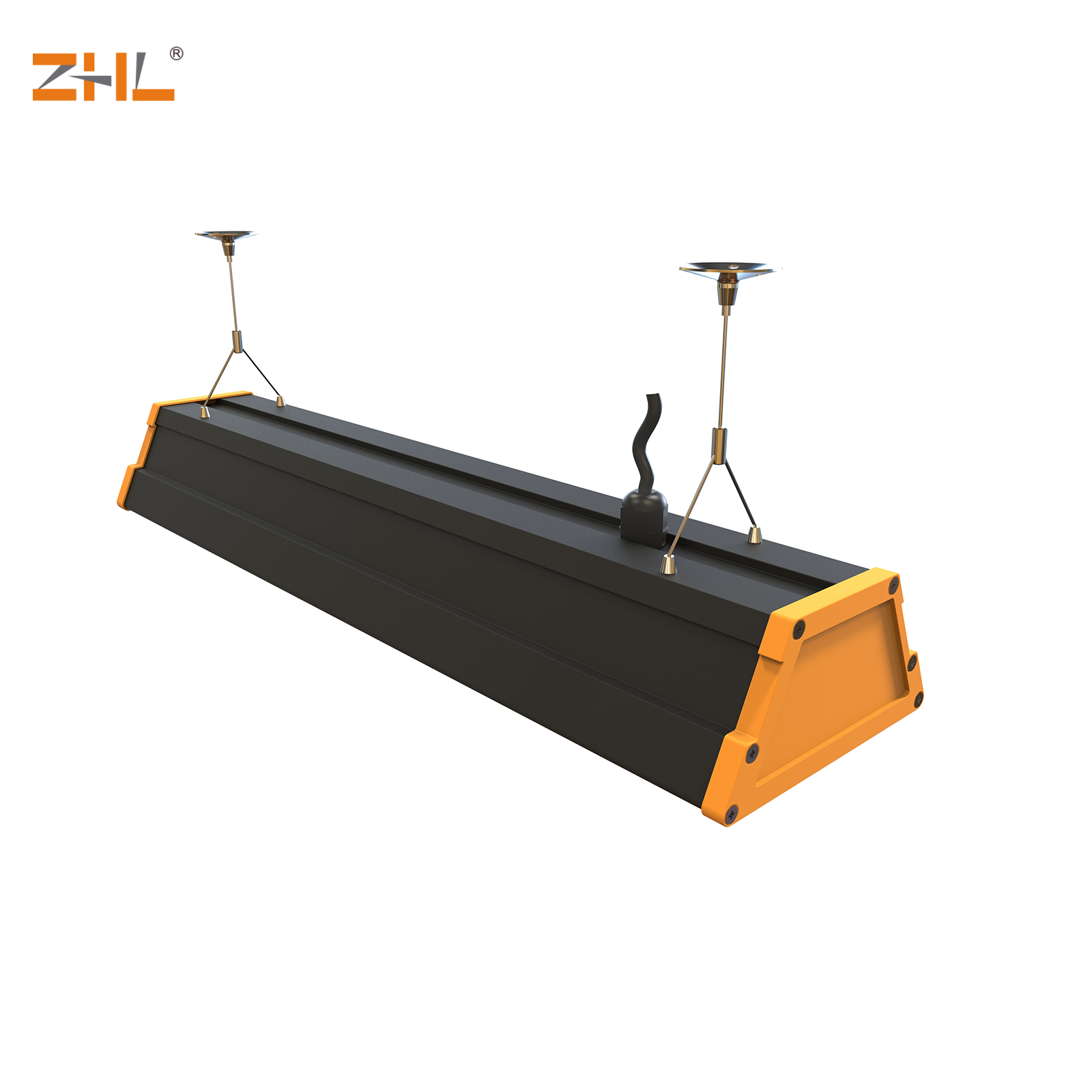

- V-Clips for dual point chain or cable hanging (std.)
- Advanced and Basic Controls Options
- -40℃-45℃ Ambient Temperature Range
- 3000K to 6000K CCT
- >80 Color Rendering Index (CRI)
- Calculated L70 >100,000 hrs
- 120-277V Universal Voltage
- 5 Year Warranty
Using Seoul Semiconductor’s 2835 LED chip for the first time, ZHL redesigned the linear highbay and ensured that the product can be seamlessly used in industrial plants and other industrial facilities with high ceilings. The manufacturer extends the warranty for 5 years, which can make users feel at ease to use this professional equipment.
Engineers now customize it in a range of 130lm/w to 180lm/w, with 60° to 90° beam angle available.
ZHL is the most versatile Manufactured High Bay fixture on the market today, offering specification design and performance, making it suitable for a variety of applications.
- Aluminum Body with steel channel for added rigidity
- Toolless Hinged Driver Access
- Impact Resistant and IP65 Rated Lens Options:
- Frosted Acrylic (FRL)
- Frosted Polycarbonate (PFL) IK10 Impact Rated
- V-Clips for dual point chain or cable hanging (std.)
- Advanced and Basic Controls Options
- -40℃-45℃ Ambient Temperature Range
- 3000K to 6000K CCT
- >80 Color Rendering Index (CRI)
- Calculated L70 >100,000 hrs
- 120-277V Universal Voltage
- 5 Year Warranty
| Model No. | Power | Luminous Efficiency | Chip | Driver | Surge Protection | Voltage | PF | CRI | Beam Angle | CCT | Product size | Protective Grade | Material |
| ZGE-TXGKD-50LF2 | 50W | 130LM/W±10% | Seoul S.2835 | Non-Isolated Driver：CCC/TUV/UL/SAA/BIS Certified,IP65 | 4KV / 4KV | 120-277V/50-60Hz | ≥0.9 | ≥80 | /60°/90° | 3000K/ 4000K/5000K/ 6000K | 339*95*65mm | IP65 | Aluminum Body + Tempered Glass Cover |
| ZGE-TXGKD-80LF2 | 80W | 130LM/W±10% | Seoul S.2835 | Non-Isolated Driver：CCC/TUV/UL/SAA/BIS Certified,IP65 | 4KV / 4KV | 120-277V/50-60Hz | ≥0.9 | ≥80 | /60°/90° | 3000K/ 4000K/5000K/ 6000K | 451*95*65mm | IP65 | Aluminum Body + Tempered Glass Cover |
| ZGE-TXGKD-100LF2 | 100W | 130LM/W±10% | Seoul S.2835 | Non-Isolated Driver：CCC/TUV/UL/SAA/BIS Certified,IP65 | 4KV / 4KV | 120-277V/50-60Hz | ≥0.9 | ≥80 | /60°/90° | 3000K/ 4000K/5000K/ 6000K | 451*95*65mm | IP65 | Aluminum Body + Tempered Glass Cover |
| ZGE-TXGKD-150LF2 | 150W | 130LM/W±10% | Seoul S.2835 | Non-Isolated Driver：CCC/TUV/UL/SAA/BIS Certified,IP65 | 4KV / 4KV | 120-277V/50-60Hz | ≥0.9 | ≥80 | /60°/90° | 3000K/ 4000K/5000K/ 6000K | 790*95*65mm | IP65 | Aluminum Body + Tempered Glass Cover |
| ZGE-TXGKD-150LF2 | 200W | 130LM/W±10% | Seoul S.2835 | Non-Isolated Driver：CCC/TUV/UL/SAA/BIS Certified,IP65 | 4KV / 4KV | 120-277V/50-60Hz | ≥0.9 | ≥80 | /60°/90° | 3000K/ 4000K/5000K/ 6000K | 900*95*65mm | IP65 | Aluminum Body + Tempered Glass Cover |
How do you offer OEM services?
OEM, or original equipment manufacturer, is a term heard most often within consumer goods categories. Initially, it was associated with a company that manufactured a product which was then resold or rebranded by another company. However, the meaning of this term has evolved over time, and today it refers to different things. For instance, OEM can reference a company that manufactures the actual components used by another company to build a whole system. In other instances, we (ZHL) rebrands your company’s products and allows you to sell them to end-users.
It should be noted that the intellectual property rights of the OEM project belong to ZHL, including the appearance, function, design, certifications and mold of the product. As a partner, your company has additional rights such as mass production, pricing, and providing value-added services to end users.
Through OEM program, you add your brands and packaging to our product line and purchase inventory from us.
How do the ODM program work?
ODM is the acronym for ‘Original Design Manufacturer’ which rely on product specifications or designs coming from your company. All product-relevant patents, trademarks, certifications, drawings, molds and any other property rights belong to your company. ZHL is a role in this process as a supplier who offers raw material, production, assembling and packing.
How do I start my OEM/ODM with your company ( ZHL)?
- Send inquiry to ZHL (Click here) and elarorate your needs in detail, including product category, material, structure, and certification requirements.
- One of our experts will respond to your inquiry. In most cases, they will start a process of sample which includes certain prototypes that meet your needs.
- After you receive and test your sample, you confirm the sample. In most cases, you may require a factory inspection in this step. Then our expert will discuss with you about massive order quantity, packaging design, label design, etc.
- Our manufacturing department start producing your orders.
Warranty
In lighting industry, manufacturers usually offers 3 years warranty (some 5 years). Our mufacturer warranty also covers 3 years warranty (some offers 5 years 50000 hours). As a local vendor, you are obliged to collect damaged end products sold in the market within 3 years, and then return them in batches to our factory for free replacement.
